ToggleButton In Android

Click Here To download Full Source Code

ToggleButton is used to make ON or OFF a particular task. For Example Alarm ON/OFF , Bluetooth ON/OFF, WI-FI ON/OFF etc..

Here i am using image visible/Hide

package name : selva.toggle

project name  : ToggleButton

version            : 1.5 (supports 1.5 and above versions).


main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_marginLeft="84dp"
        android:text="Toggle Button"
        android:textAppearance="?android:attr/textAppearanceMedium"
        android:textColor="#00ff00" />

    <ToggleButton
        android:id="@+id/toggleButton1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
         android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:layout_marginLeft="100dp"
        android:layout_marginTop="30dp"
         android:textOn="Hide Image"
         android:textOff="Show Image"
         android:checked="false"
        android:text="ToggleButton" />


    <ImageView
        android:id="@+id/imageView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:layout_marginLeft="125dp"
        android:layout_marginTop="100dp"
        android:visibility="invisible"
        android:src="@drawable/ic_launcher" />

</RelativeLayout>

ToggleButtonActivity.java

package selva.toggle;

import android.app.Activity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.ImageView;
import android.widget.Toast;
import android.widget.ToggleButton;

public class ToggleButtonActivity extends Activity {
    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        final ToggleButton tbutton=(ToggleButton) findViewById(R.id.toggleButton1);
        final ImageView img=(ImageView) findViewById(R.id.imageView1);
        Log.d("p","p1");
        tbutton.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                 Log.d("p","p2");
                int x;
                String flag=(String) tbutton.getText();

                if(flag.equalsIgnoreCase("Hide Image"))
                {

                    Toast.makeText(getApplicationContext(), "Image visible On", Toast.LENGTH_SHORT).show();
                    img.setVisibility(View.VISIBLE);
                }
                else
                {
                    Toast.makeText(getApplicationContext(), "Image visible Off", Toast.LENGTH_SHORT).show();
                    img.setVisibility(View.GONE);
                }

            }
        });

    }
}

OUTPUT:

click Show Image

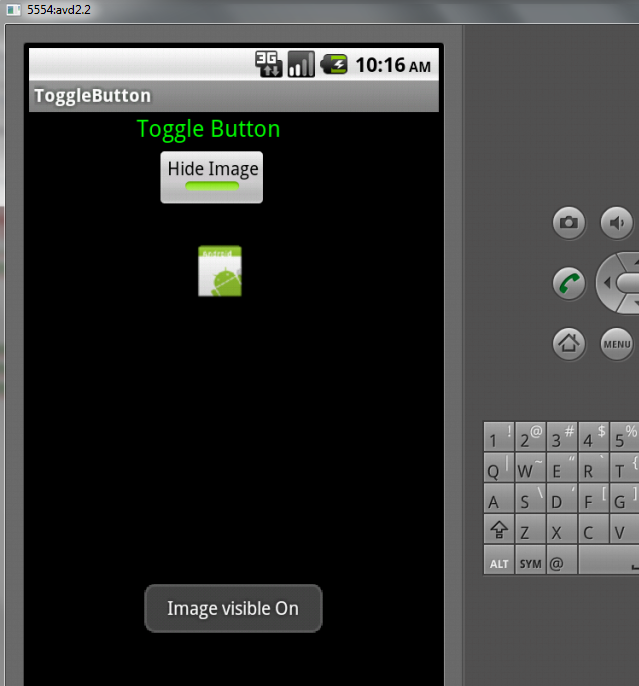

click Hide Image
